Quick Details

  • Style: Radio Control Toy
  • Type: Quadcopter
  • Power: Battery
  • Radio Control Style: RC Hobby
  • Place of Origin: China (Mainland)
  • Brand Name: LOTUSRC
  • Model Number: LHT580

Packaging & Delivery

Packaging Details: Gift Packing
Delivery Detail: 1-3 Days

Specifications

1.LOTUSRC RC Quadcopter LRT580 AP/AV based ARTF (FPV Carrier)
2.nertial-based(6DOF IMU) self-stabilization system
3. RC UFO

Features
-Inertial-based(6DOF IMU) self-stabilization system.Good for AV/AP applications,but not suitable for acrobatics flights.
-4 channels Tx is enough.No more switchs for the flight modes
-ARTF,no extra settings needed.Put on the props,the battery and the RX,then turn on the Tx to take off !
-AP/AV based
-Auto Barometer-based altitude hold if no throttle input changed in 2s..
-X and Corss flight modes available.Only Cross mode was available in the beginning.But new improvements for the X mode had been tested successfully.
-Optional single axis camera mount(pitch) with double axis self-stabilization(pitch and roll).
-Larger MTM distance(580mm),larger payload (<580g),and longer flight time(25 mins with 3S Battery).Special props offered by the manufacture.
Powerful
-Optional GPS position hold(The GPS module still in internal testing, not included in this kit).
-Buzzer warning for low battery,and optional lights for night flight(The interfaces are available,but soldering should be done before coming out -of the factory according to the demands of the costomers.In order to avoid some trouble of making the hardware easy to be damaged).
-Other features considering to be supported in the future:Configuration Software available and Firmware upgradable.
-This is the ARTF kit, basically speaking, you only need a receiver and transmitter to get it ready for flying.

Product Details

Machine size

608 × 608 × 243

mm

±3mm

Expand size of the largest

885 × 885 × 243

mm



Motor Wheelbase
t

Diagonal line, the two motor centers wheelbase

580mm

±3mm

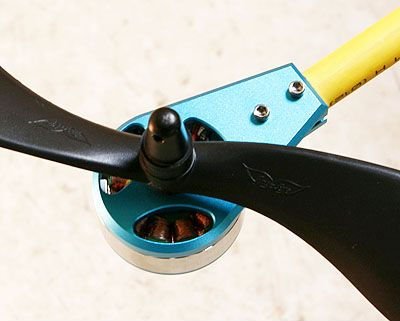

Propeller

1260, positive and negative special paddle

12”



Battery

LiPo 3S 2200mAh 20C

1P



Single Weight

No battery, receiver, load

730g

±10g

Take-off weigh

3S 2200mAh 1P Battery, receiver, head

950g

standard

Payload

Camera card

≤230g

standard

Maximum power pulled

Using the standard battery 1P

2400g



-

Maximum payload

Using the standard battery 1P

≤580g



-

Maximum takeoff weight

Using the standard battery 1P

1800g

Safety limit

Flight distance

Remote control device and battery capacity by the decision

-



-

Flight Time

3S 2200mAh 1P Battery, receiver

12 minutes

No wind hover

Wind strength

≤4

Class



-

Item Packing

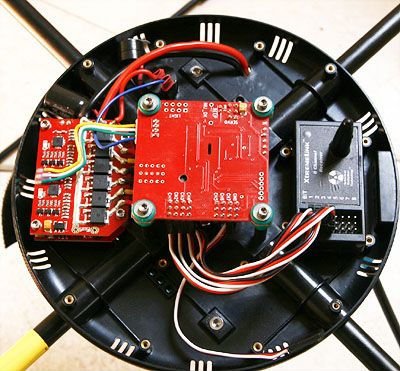

-Pre-installed aircraft main body, including brushless ESC, flight control panel, motor X 1

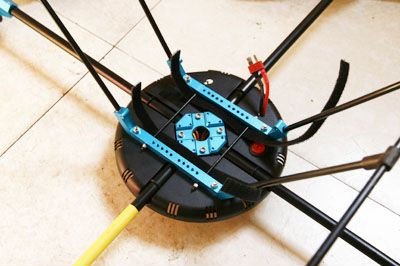

-pre-installed stands unit, including 4 fixed nuts X1
-pairs of special propellers in positive and negative X 3
- bullet blade folders X 4
-Velcro X 1


* Pan & tilt for camera is not included.
