FPV BEC power indicotors stosd indictor HUBOSD ECO X Type w/STOSD8 BEC PDB XT60 Plug

FOB Reference Price:Get Latest Price
US $10-20 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Style:
Radio Control Toy
Type:
Multicopter
Power:
Battery
Material:
Other
Scale:
Other
Radio Control Style:
RC Hobby
Place of Origin:
China (Mainland)
Brand Name:
Feixiang
Model Number:
indicotors stosd indictor HUBOSD ECO XP046
part number:
XP046
Packaging & Delivery
Packaging Details
Gift Packing

Features

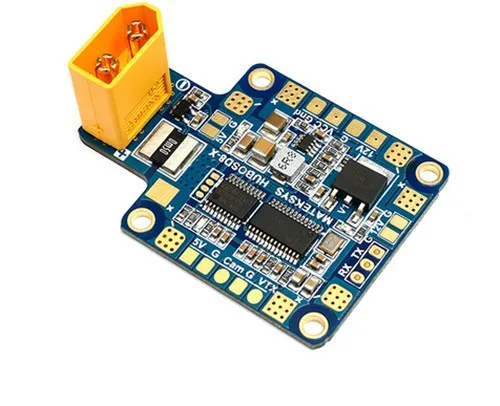

The HUBOSD8 has been engineered to provide the highest possible performance and reliability in a 46*36mm & 4 layers PCB.

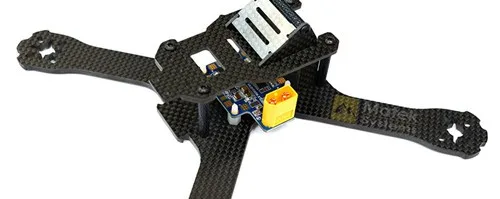

It is a multifunctional HUB with PDB, BEC 5V/2A &12V/500mA, Current sensor 140A, STOSD8. It is specially made for the mini FPV Quad.
The BEC 12V is linear regulator, no LC Filter needed. Built-in STOSD8 can support Plug & Play, no complicated settings needed.





Product Details





Brand name: Realacc
Input voltage range (3S-5S operation): 8 - 21VDC
PDB: 4x30A (Max.4x35A)
Regulated 5V and 12V outputs
Current Sensor 140A
Built-in STOSD8
Physical:
- 2oz copper, 4-layers &1.6mm PCB.
- 1x Battery input, 4x ESC outputs.  2x BEC 5V outputs, 2x BEC 12V outputs.
- Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads
- 1x Serial port (RX, TX, G)
- Dimensions: 51x36x4mm, Weight: 9g
- Mounting holes 30.5mm square spacing, Φ3mm

PDB (ESC outputs)
Continuous current: 30A per output
Peak current (10 seconds/minute): 35A per output

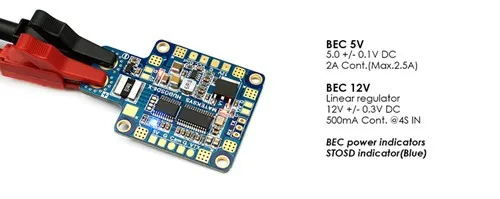

BEC 5V outputs
Designed for RC Receivers, Flight controllers, OSD, and Servos.
DC/DC synchronous buck regulator.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)

BEC 12V outputs
Linear regulator, very low noise. LC Filter is needless.
Designed for Video TX or FPV camera.
Voltage: 12.0 +/- 0.3VDC (4~5S operation)
Continuous current: 500mA@16V IN,  400mA@20V IN
Short-circuit tolerant (2 seconds/minute)
If the battery is 3S LiPo,  Output voltage=3S LiPo voltage - 1V

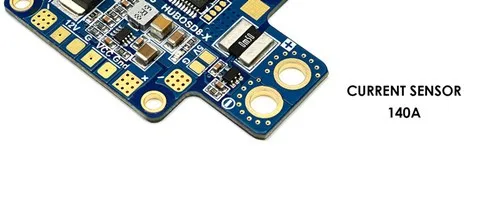

Current Sensor: 140A
If current >140A. STOSD display 140A

STOSD8
Running indicator
Blue LED blinks: STOSD is initializing
Blue LED light: STOSD is working.

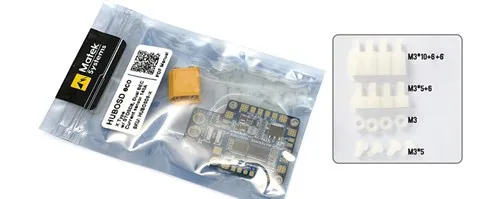

Item Packing





HUBOSD ECO X Type w/STOSD8 Current Sensor 5V 12V Dual BEC PDB with XT60 Plug--Feixiang RC Model Wholeseller Shop

-HUBOSD ECO X Type w/STOSD8 Current Sensor 5V 12V Dual BEC PDB with XT60 Plug X 1
