Quick Details

  • Style: Radio Control Toy
  • Type: Robot
  • Power: Battery
  • Material: METAL
  • Scale: Other
  • Radio Control Style: RC Model
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Feetech
  • Model Number: SM30
  • control system: digital
  • Color: Red
  • Weight: 72G

Packaging & Delivery

Packaging Details: Gift Packing
Delivery Detail: 7

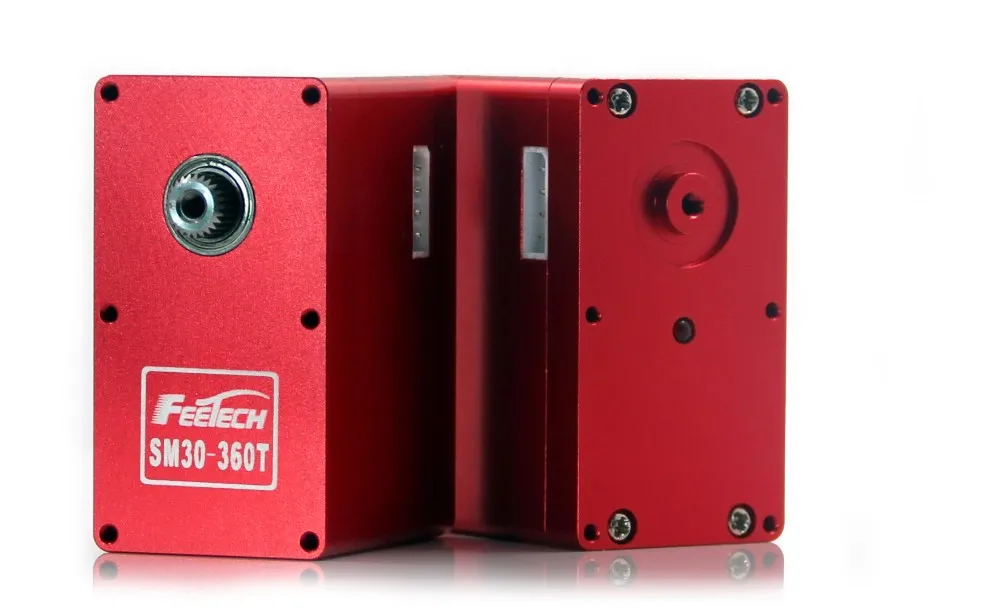

FEETECH SM30 Dual Output Shaft fit for Robot Joint 30 kg Digital Servo



SM30-360T(TTL Communication level)

SM30-360M(485 Communication level)



Video:

https://v.qq.com/x/page/p03590p4zo7.html



SM30-360T/M  Serial bus smart control servo fully integrated Motor, servo drive,

Serial bus communication interface and sensor together as one servo,Mainly used for micro robot joint, wheel, track drive,

Can also be used for other simple position control occasions.

Feature:

Big Torque:30Kg. cm

Large Angle:+_30 thousand turns(Arbitrary absolute relative)

DC 6.5V~13V power supply

0.088 °Position resolution

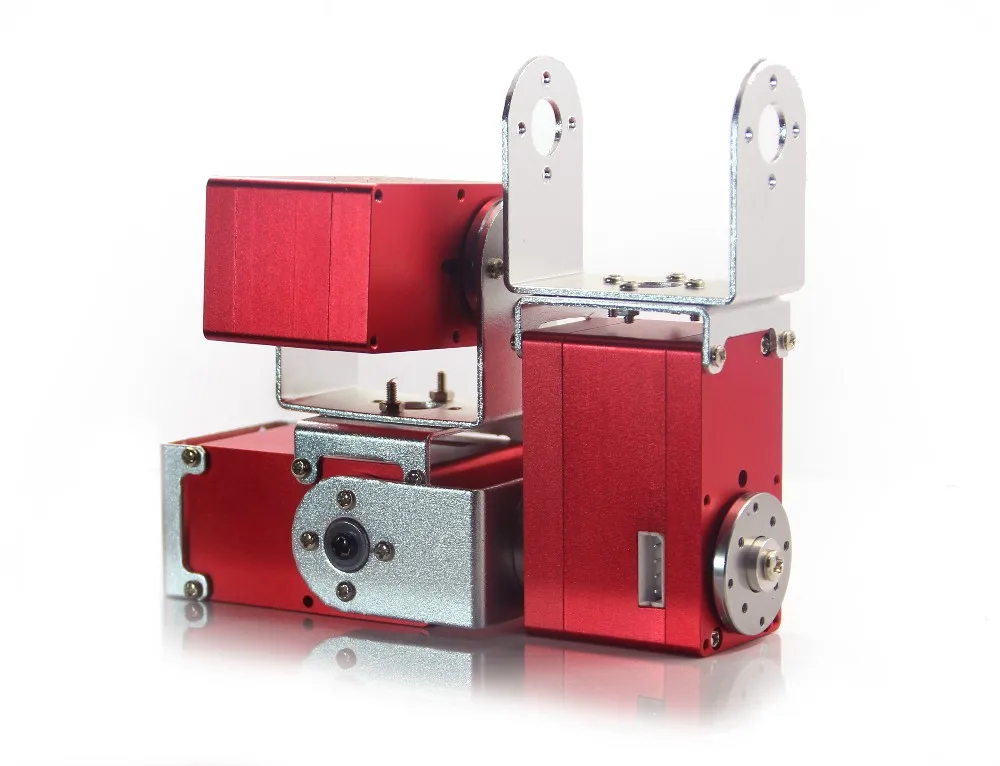

Dual output shaft fit for robot joint

High precision all metal gear set,Double ball bearing

Full Aluminium alloyCNC case,Good cooling effect

Position servo control mode ,rotation range 0-360°and many turns Arbitrary absolute relative angle.

In the speed control mode ,can be continuous rotation,adjust speed

Duplex asynchronous T T L  / 4 8 5  Communication level

Daisy chain connection, 254 ID can choose

High reach  1M  Baud  rate

333Hz servo update rate

Can give feedback on  position,temperature,voltage,speed and  current load

Use open  FT SCS Serial asynchronous communication protocol



SM30-360T/M robot servo adopts advanced servo control technology and 32 bit high speed ARM microprocessor, fast response, accurate positioning without jitter. Compared to the traditional RC servo 50Hz control frequency, the SM30-360T/M series robot servo through the control frequency of up to 333Hz, to ensure the accuracy of position control and maintain the stability of the moment.

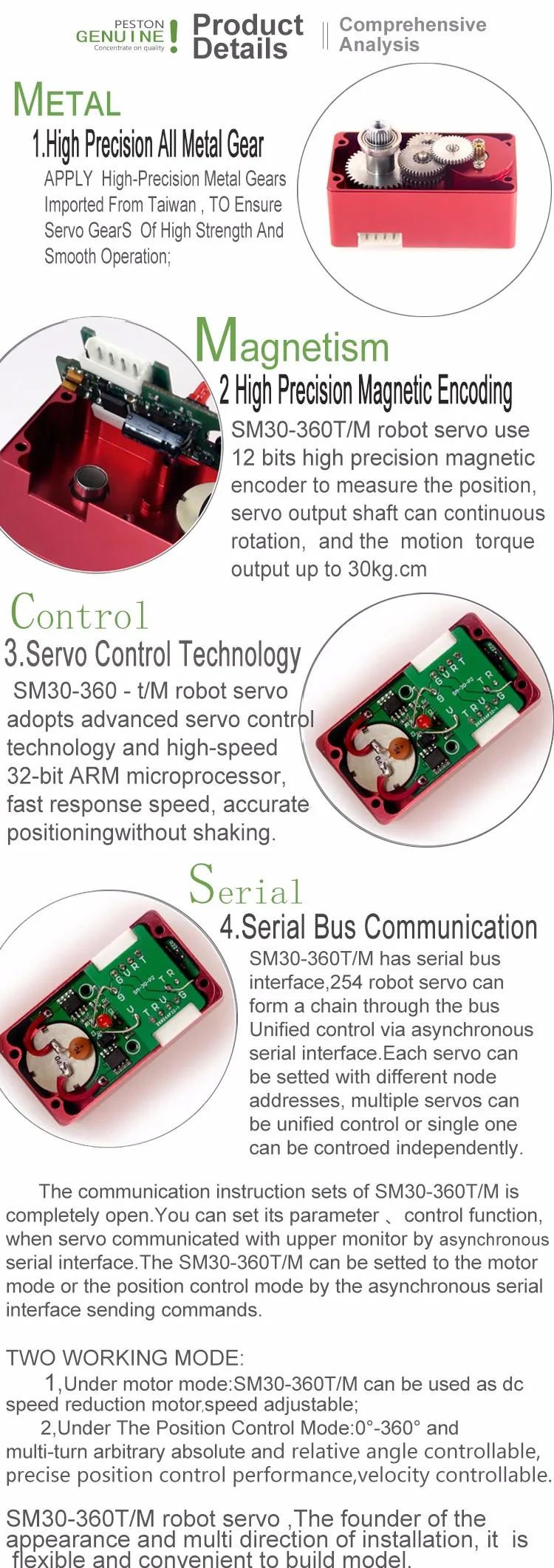

The SM30-360T/M robot servo uses 12 bits high precision magnetic encoder to measure the position, the servo output shaft may rotate continuously for a whole week, the movement torque output is as high as 30kgf.cm.

  SM30-360T/M has serial bus interface, the 254 robot servo can form a chain through the bus. Each servo can be set with different node addresses, multiple servo wheels can be unified motion can also be a single independent control.

  The communication instruction set of SM30-360T/M is completely open, and the servo communicates with the host computer through the asynchronous serial interface. The SM30-360T/M can be set to either the motor mode or the position control mode by sending commands through the asynchronous serial interface.



In motor mode, SM30-360T/M can be used as DC motor, speed adjustable; in position control mode, 0-360 degrees and multi circle arbitrary absolute and relative angle can be controlled within this range with accurate position control performance, speed control.

SM30-360T/M robot servo and the founder of the multi - directional installation, user-friendly flexible model.











 We can provide Customized service:

1.Customized Various of wide working voltage servo (4.8-12V)



2. Customized Dual working mode servo

(1.continuous rotation motor mode   2.Rc servo work mode)



3.Customized large angle servo(0-360°& 360* n °multi circles

and any angle controllable servo)



4.Customized Various of special function servo



5.Customized Various of Communication level Serial Bus servo(TTL,RS485)



We have a strong R&D team,Perfect matching supply system,

we can finish R&D for various of special customized needs in short time

We expect to creat new value with clients together.









Service:



1."Reasonable price,delivery on time,good services" is our business principle

2.We have own factory,specialized in this field many years, warmly welcome your design

3.Small order and mixed items are available

4.Fast delivery as most of products we have in stock

5.Competetive price and good quality.

6.samples and products according to customers' requirement.



FAQ:

Q: How can I get a sample?

A: As custom item,you need to pay for the shipping cost and sample cost,

or you can provide us your  dhl, ups, fedex or tnt acount to us for samples' shipment.

 Customized size of sample should be charged.



Q:How long for the delivery once we place order?

A:The lead time is declded the item you ordered and the quantity.

  For normal order,the lead time is about in 5-7 days,

  If big quantity or OEM,the lead time will be some days more.



Q:The price you are offering is with shipping costs included?

A:The price does not include the shipping cost.We offer several

  shipping solutions,make sure customers choose the most economical one.



Q:Do you have After-Sales Service?

A:Of course,We have special department to do it,and if you have any technology

  problem,our eingeer will give your answer.
